polyboard export to V carve
Avatar
Alex

Forum Posts: 1841
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
2
April 8, 2024 - 12:34 pm
sp_Permalink sp_Print

Hi ,

For better management, I have move your topic to CNC and Other softwares,

You have line in twice or first layer for Overall pase panel AND Outline?

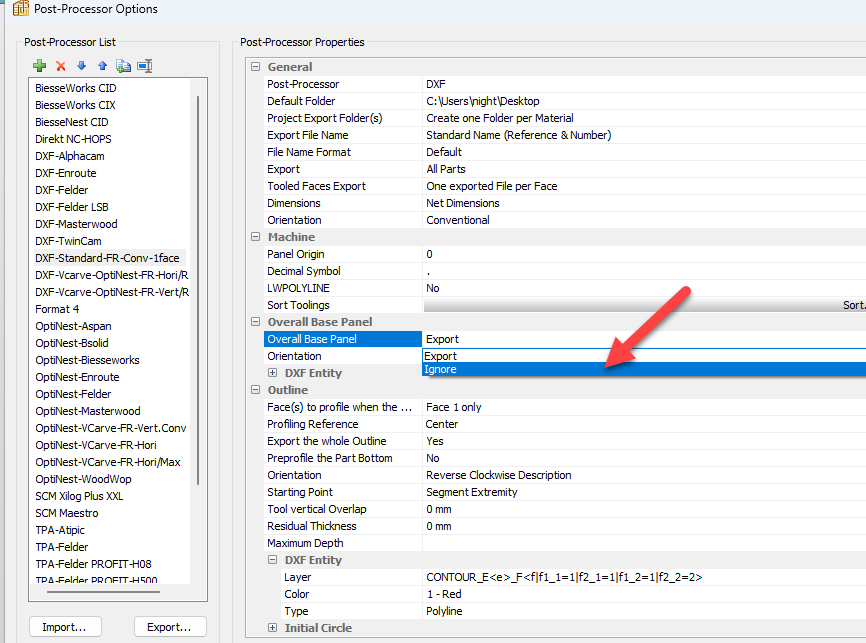

Some CAD/CAM Need both, with Vcarve only outline is need and you can disable overall base panel from PP setup

Ignore-Overall-2.pngImage Enlarger

There are 2 ways of milling the 2 sides

-By milling/cutting the complete panel and then milling the 2 faces

-Or by turning the complete panel over

Did you read this page first? It explains most of the different processes.

>PolyBoard and OptiNest nested manufacturing with doubled sided machining and edge drilling

Cheers, Alex

sp_PlupAttachments Attachments
Avatar
William McCreanor

Forum Posts: 9
Subscriber Since:
March 4, 2024
sp_UserOfflineSmall Offline
1
April 8, 2024 - 10:37 am
sp_Permalink sp_Print

hello,

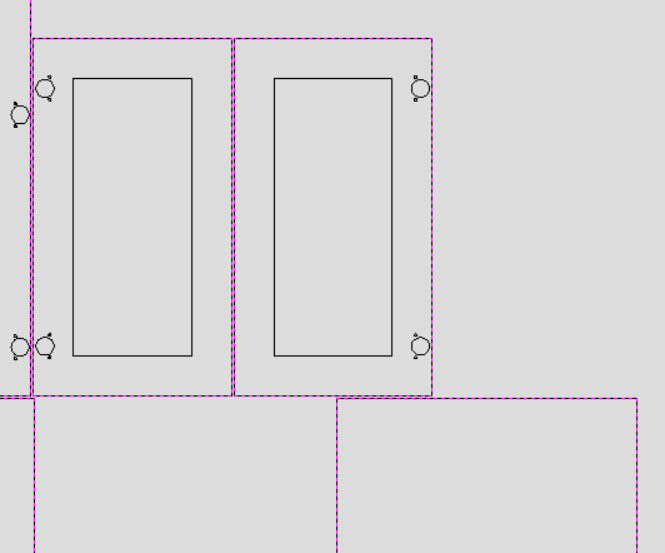

When i export from polyboard to v carve all my outside lines have came in twice. Screenshot-2024-04-08-103323.pngImage Enlarger

Also how do i bring in double sided panels e.g. pocket front and back of doors
